Reinforced Fiber Tape

Reinforced Fiber Tape

Details
Items: Reinforced Fiber Tape
Tape thickness: 1.00mm、1.27mm、1.50mm、1.65mm or others
Width: 50mm、100mm、150mm、225mm or others
Length: 10m、30m、60m or others
Related products: Viscoelastic Tape, anti-corrosion primer, Solventless Liquid Epoxy Primer
Category
Reinforced Fiber Anticorrosive Tape
Share to
Send Inquiry
Description
Technical Parameters

Jining Xunda Pipe Coating Materials Co., Ltd. is one of the leading manufacturers and suppliers of reinforced fiber tape in China. If you're going to buy advanced reinforced fiber tape, welcome to get pricelist and free sample from our factory. All customized products are with high quality and competitive price.



Product Details

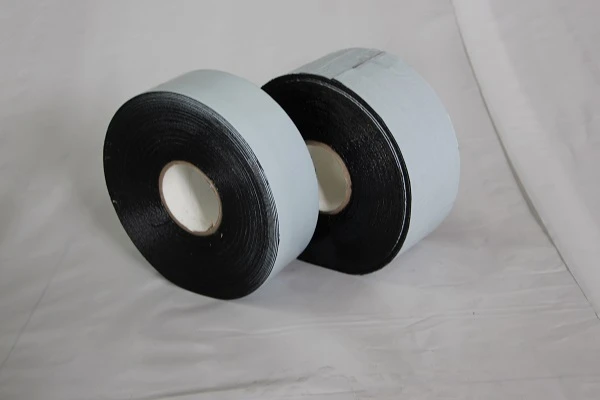

Polypropylene fiber anti-corrosion tape is an innovative, eco-friendly anti-corrosion material with zero pollution. Approved by construction and environmental protection authorities, it is a superior replacement for traditional asphalt fiberglass cloth and epoxy coal tar pitch. The tape delivers great tensile strength, bonding performance, impact resistance, UV resistance and aging resistance, while offering easy and convenient on-site construction.


It is composed of modified polypropylene woven fiber base and butyl rubber modified asphalt adhesive layer. The product fully meets ANSI/AWWA C20W00 and NACE R0274-95 standards, with performance indicators far exceeding the industry standard SY/T0414-2017. It is widely applied to external anti-corrosion treatment and maintenance of underground storage tanks in petroleum, natural gas and chemical industries.


Our products have supplied the vast majority of polypropylene fiber anti-corrosion tapes for 18 gas station projects in the key national West-East Gas Pipeline Phase II project.
The system can be applied by hand or with a wrapping machine.



Product Parameter



System properties:

Backing: 0.30mm

Adhesive: 0.97mm

Product properties

Test Method

Typical Value

Tensile Strength

ASTM D4632

200N/cm

Elongation at break

ASTM D1000

70%

Peel Strength to primed steel

ASTM D1000

35N/cm

Cathodic Disbondment

ASTM G8

6.4mm

Water Absorptivity

ASTM D570

0.02%

Water Vapor Transmission Rate

ASTM F1249

0.5g/㎡

Dielectric Strength

ASTM D149

12KV

Temperature Range For Application For Service



5℃-50℃

-30℃-85℃

product-600-400
product-600-400
product-600-400



System Features



  • Non shielding coating.
  • Excellent resistance to UV
  • Excellent resistance to soil stress
  • Excellent resistance to vapor transmission.
  • Excellent resistance to cathodic disbondment.
  • Good conformability and consistent uniform thickness
  • Waterproof for the basement, bridges ,roof etc.
  • Meets ASTM D 1000 and other international standards
product-600-448



Product Service



  • OEM is accepted,your tag,label,logo
  • Sample:it is necessary,will send our sample firstly to check quality
